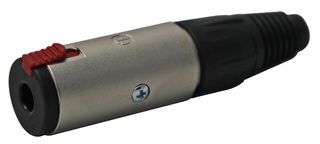

NJ3FC6

The NJ3FC6 is a 3-contact professional locking 1/4-inch Cable Jack for secure in-line connections. It has nickel housing, silver-plated brass contacts and excellent cable protection. It provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.

• Metal shell makes it extremely robust and reliable
• Neutrik cable retention and boot as on XLR connectors
• Solder terminals
• <lt/>6mΩ Initial contact resistance
• 1kVDC Dielectric strength
• ≥1GΩ at 500Vdc Insulation resistance
