KIT33772CTPLEVB

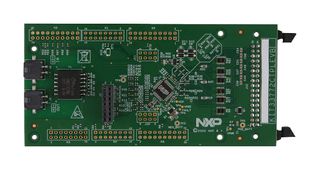

Evaluation board (EVB) features the MC33772C, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing and GPIOs. It is designed to support development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3-6 cells in series. Up to 63 KIT33772CTPLEVB can be connected within a daisy chain. The battery cell information is transferred to the microcontroller unit (MCU) through an isolated differential communication bus using FRDMDUAL33664EVB.

• Evaluation board for MC33772C with isolated daisy chain communication
• Targeted for battery management system, EV power inverter, HEV applications
• Isolated daisy chain communication (transformer)
• 34 pin connector for 6 cell battery connections and current sensing
• 3 off board temperature sensing inputs and 2 voltage measurement inputs
• VCOM status LED indicator
• MC33772C (6 cell voltage measurements, 100mA cell balancing, diagnostic functions)

内容

Assembled and tested evaluation board/module in anti-static bag, Quick start guide, 20cm TPL bus cable.
