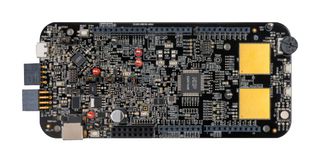

S32K14WEVB-Q064

S32K14WEVB-Q064 is an evaluation and development board for general purpose industrial and automotive applications with higher demands for ambient operating temperature range. Based on the 32-bit Arm® Cortex®-M4F S32K144W AEC-Q100 Grade 0 qualified (-40° C to +150° C Ta), the S32K14WEVB-Q064 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

• 32-bit Cortex-M4F based S32K144 MCU
• UJA1169TK: Mini high-speed CAN system basis chip
• Transceivers: TJA1027: LIN 2.2A/SAE J2602 transceiver and TJA1145ATK: high speed CAN transceiver
• OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces
• Easy access to the MCU I/O header pins for prototyping
• Small form factor and low cost
• On-board connectivity for CAN, LIN, UART/SCI
• Flexible power supply options: micro USB or external 12V supply
• 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
