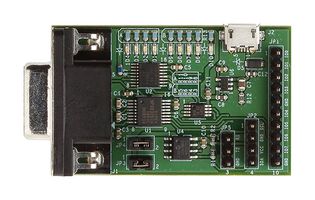

SC18IM704-EVB

SC18IM704-EVB is a UART to I2C bridge evaluation board. Easy to use board with mounted SC18IM704PW allowing connections to UART controllers and I2C targets for protocol conversion.

• SC18IM704 UART to I²C-bus bridge IC
• With high-speed RS-232 baud rate up to 460.8kbps
• I2C-bus controller up to 375KHz with 256byte TX and RX FIFO
• Eight configurable I/O ports can be used for LED or other I/O purpose
• Wide voltage range from 1.71V to 3.6V operation with 5V tolerant I/O pins
• Temperature range from -40°C to 105°C, can be used in high temperature industrial applications

内容

Assembled and tested evaluation board in an anti-static bag, Wurth ferrite core, Instruction of how to use the ferrite core.
