C300K20R
电阻器, 20 ohm, Corrib 280 Series, 300 W, ± 10%, 焊片, 1 kV
47 有货
需要更多？
47 件可于 5-6 个工作日内送达(英国 库存)
该库存量售罄后，将不再备货
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY237.830 (CNY268.7479) |
| 2+ | CNY230.040 (CNY259.9452) |
| 3+ | CNY222.240 (CNY251.1312) |
| 5+ | CNY214.440 (CNY242.3172) |
| 10+ | CNY206.640 (CNY233.5032) |
| 20+ | CNY202.740 (CNY229.0962) |
包装规格：每个
最低: 1
多件: 1
CNY237.83 (CNY268.75 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述

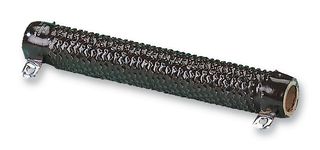

The C300K20R is a 20Ω 300W through-hole mounting fixed large heavy-duty vitreous enamel Power Resistor with wirewound element, tubular ceramic core and tinned lug with hole terminals. The Corrib® 280 series resistor designed to withstand frequent start-stop cycles characteristic of motor starting, dynamic braking and other similar applications. To accelerate cooling, the wire is securely fused to the ceramic core by the protective vitreous enamel coating to improve durability. This resistor is hollow-core unit which can be securely fastened to chassis surface with thru bolts and brackets.
- Manufactured with corrugated resistive wire
- Ribbed construction aids in rapid cooling
- Based on 25°C free air rating power rating
- High Power Resistor
技术规格
电阻
20ohm
额定功率
300W
电阻端子
焊片
电阻技术
绕线
电阻类型
高功率
产品长度
215.9mm
产品高度
-
工作温度最高值
400°C
SVHC(高度关注物质)
No SVHC (10-Jun-2022)
产品范围
Corrib 280 Series
电阻容差 ±
± 10%
额定电压
1kV
温度系数
± 400ppm/°C
安装方式
面板安装
产品宽度
-
工作温度最小值
-
合规
-
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
税则号：85332900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：否
RoHS 邻苯二甲酸盐合规:否
SVHC:No SVHC (10-Jun-2022)
下载产品合规证书
产品合规证书
重量（千克）：.24494
