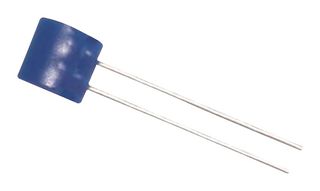

F1540-100-1/3B
电阻温度传感器, 带引线的组件, 1/3B 级, -70 °C, 500 °C, 100 ohm, 白金版
可订购
制造商标准交货时间：16 周
有货时请通知我
产品概述
F1540-100-1/3B is a OMEGAFILM® platinum RTD sensor. The resistance vs. temperature relationship of OMEGAFILM RTD conforms to the internationally accepted IEC60751 standard. RTD conforming to this standard has a temperature coefficient of resistance (also known as Alpha) of 0.00385ohm/ohm/°C between 0 and 100°C. As a result OMEGAFILM RTD element can be used worldwide with a multitude of controllers and instruments designed to function within these requirements.
- Flat profile thin film platinum for OEM applications
- Very low cost, flat, small profile
- Vibration resistance of 40g acceleration at 10 to 2000Hz
- Shock resistance at 100g acceleration with 8ms half sine wave
- Size is 1.5 x 4.0 x 0.8mm (W x L x H)
- 100 ohm nominal resistance
- Self heating is 0.4K/mW at 0°C
技术规格
RTD类型
带引线的组件
最高感应温度
500°C
测量温度最小值
-70°C
测量温度最大值
500°C
RTD元件材料
白金版
探头直径
-
电缆长度 - 公制
10mm
电缆端子
引线式
产品范围
F Series
最低感应温度
-70°C
RTD精度
1/3B 级
电阻
100ohm
电阻 @ 0°C
100ohm
探头材料
-
探头长度
-
电缆长度 - 英制
0.4"
线路配置
2线
SVHC(高度关注物质)
No SVHC (27-Jun-2024)
技术文档 (1)
法律与环境
税则号：90259000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下载产品合规证书
产品合规证书
重量（千克）：.000068
