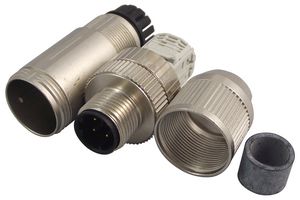

SACC-M12MSD-4Q SH -
传感器连接器, M12, 插头, 4 触点, IDC / IDT插头, 直形线缆安装
- 制造商产品编号:
- SACC-M12MSD-4Q SH
- 库存编号
- 2313671
- 也称为:
- 1543223, GTIN UPC EAN: 4046356097383
- 技术数据表:
- SACC-M12MSD-4Q SH Datasheet
产品概述
The SACC-M12MSD-4Q SH is a 4-position shielded Bus System Straight Plug with Ethernet CAT5 (100Mbps), M12 shielded, D-coded, insulation displacement connection. The 1543223 connector brass knurl with nickel-plated finish. Insulation displacement connection, innovative and time-saving assembly without stripping single wire.
- 4 to 8mm External cable diameter
- Safe use in the field, thanks to a high degree of protection
- Flexible connectors for on-site assembly
- Reliable signal transmission, 360° shielding in environments with electromagnetic interference
应用
传感与仪器
产品信息
- :
- -
- :
- M12
- :
- 4 Positions
- :
- IDC / IDT插头
- :
- 直形线缆安装
- :
- IP67
- :
- D编码
- :
- 尼龙6.6(聚酰胺6.6)主体
- :
- 黄铜
- :
- 金
- :
- 1.75A
- :
- 60VDC
也称为
1543223, GTIN UPC EAN: 4046356097383
| 数量 | 价格（含增值税） | 您所支付金额（含增值税） |
|---|---|---|
| 1+ | CNY149.37 (CNY168.79) | |
| 5+ | CNY143.15 (CNY161.76) | |
| 10+ | CNY134.72 (CNY152.23) | |
| 25+ | CNY127.25 (CNY143.79) | |
| 50+ | CNY120.55 (CNY136.22) | |
