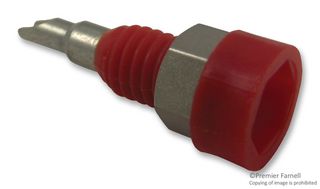

RADIALL R921921000
香蕉插座, 2MM, 10A, 焊接, 红色
- 制造商：
- RADIALL RADIALL
- 制造商产品编号:
- R921921000
- 库存编号
- 2406495
-
- 产品范围
- R921
- 技术数据表:
- R921921000 数据表
- ECAD / MCAD
-
产品范围选择器 (R921)
查看全系列相关产品产品信息
技术文档 (1)
产品概述
The R921921000 is a 2mm red insulated Banana Plug with solder pot, nickel-plated brass contact, machined panel-mount socket, tin-plated solder termination, 4mm strip length. It accepts 20AWG cable. Robust contact point pressure when connected, high durability for high number of mating cycles.
- Excellent electrical conduction
- Very low contact resistance
- Strip length of 4mm
- Suitable for 20AWG cable
- Maximum current rating is 10A at 20°C
- Operating voltage is 250Vrms at 50Hz
- Dielectric withstanding voltage is 1500Vrms at 50Hz
- Minimum insulation resistance is 5000Mohm
- Maximum contact resistance is 1mohm
- Temperature range from -60°C to 100°C
应用
测试与测量
