RTK0EG0001D00001BE

RTK0EG0001D00001BE is a RA6M3 group AI kit for the RA6M3 microcontroller. The AIK-RA6M3 enables developers to get started with initial firmware development. The kit includes breakout pin headers for direct access to the RA6M3 microcontroller I/O pins. On-board support is included for several of the most commonly used peripherals, as well as interfaces for several common ecosystem standards. The AIK series is a complete reference solution designed for fast, simple integration of AI/ML technology for edge and endpoint systems. The kit comes with highly-tuned AI/ML models combined in a multi-modal solution with optimized CPU performance requiring very low memory resources. The kit provides a scalable approach enabling flexible selection of Renesas processors. Target applications include agriculture, transportation and logistics, home automation, consumer electronics, building and industrial automation, smart infrastructure.

• MCU reset push button switch
• Two user push button switches, monitored by main MCU firmware
• Operating voltage: external 5V input through any of the USB connections
• A blue LED indicating availability of regulated power
• One LED RGB, controlled by the main MCU firmware
• MCU boot configuration jumper
• Sample applications for analogue mic, TFT, UART and camera
• Asset movement recognition using motion sensor Pmod module
• EMC/EMI standards (FCC, UKCA), UL 94V-0 certified
• Multiple, reconfigurable connectivity functions to expedite AI/ML system design

内容

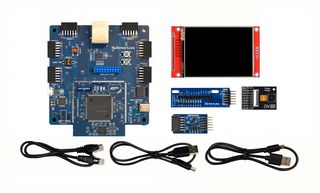

AIK-RA6M3 board, OV2640 camera module, Renesas ICM-42670-P PMOD board, Display, Display patch module, Ethernet patch cable, Micro USB device cable (type-A male to micro-B male), Micro USB device cable (type-A male to type-C male).
