打印页面
可订购
制造商标准交货时间:12 周
有货时请通知我
数量 | 价钱 (含税) |
---|---|
1+ | CNY186.290 (CNY210.5077) |
包装规格:每个
最低: 1
多件: 1
CNY186.29 (CNY210.51 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商RENESAS
制造商产品编号RTK7RLG240C00000BJ
库存编号4243154
硅芯制造商Renesas
硅芯号-
套件应用类型内嵌
应用系统子类型原型设计
内核架构RL78
内核子架构-
硅芯系列号-
套件内容快速原型开发板 RL78/G24
产品范围RL78 Family, RL78/G2x Series, RL78/G24 Group Microcontrollers
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述

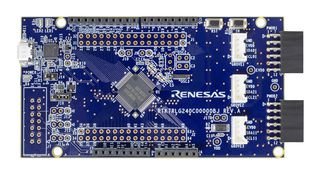

RTK7RLG240C00000BJ is a RL78/G24 fast prototyping board. This is an evaluation board based on the RL78/G24 microcontroller and is specifically designed for prototyping various applications. Simply plug in a USB cable to write/debug a program and start your evaluation without any additional tools. You can also perform advanced debugging using the E2 emulator Lite or the traditional E2 emulator. The board comes standard with Arduino Uno and Pmod™ interfaces, and has high scalability with access to all pins on the microcontroller.
- Equipped with an RL78/G24 16bit microcontroller (64-pin, ROM: 128KB, RAM: 12KB)
- Programs can be written and debugged via COM Port communication by connecting it to PC w/ USB cable
- Able to access all the microcontroller pins
- Comes standard with Arduino Uno, Pmod™ and Grove interfaces
- Support for various RL78 software and tools
内容
RL78/G24 fast prototyping board (RTK7RLG240C00000BJ), Quick start guide.
技术规格
硅芯制造商
Renesas
套件应用类型
内嵌
内核架构
RL78
硅芯系列号
-
产品范围
RL78 Family, RL78/G2x Series, RL78/G24 Group Microcontrollers
硅芯号
-
应用系统子类型
原型设计
内核子架构
-
套件内容
快速原型开发板 RL78/G24
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
技术文档 (1)
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
税则号:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量(千克):.0003
