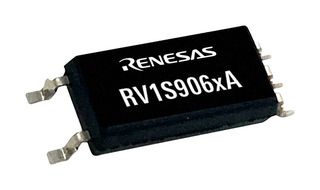

RV1S9062ACCSP-10YC#SC0
光电耦合器, 1通道, LSOP, 5 引脚, 5 kV
56 有货
需要更多？
4 件可于下一个工作日送达(Shanghai 库存)
52 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY17.780 (CNY20.0914) |
包装规格：每个
最低: 1
多件: 1
CNY17.78 (CNY20.09 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商RENESAS
制造商产品编号RV1S9062ACCSP-10YC#SC0
库存编号3958646
技术数据表
通道数1通道
光电耦合器封装类型LSOP
针脚数5引脚
隔离电压5kV
产品范围-
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述
RV1S9062A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consists of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output. The RV1S9062A is designed specifically for high common mode transient immunity (CMTI), wide operating power supply voltage range and high temperature operation up to TA = 125°C. It is suitable for IPM (Intelligent Power Module) drive. Complies with safety standard such as UL:UL1577, double protection, CSA:CAN/CSA-C22.2 No.62368-1, reinforced insulation. Typical applications include IPM driver and general purpose inverter.
- 5 pin with 8mm creepage distance package LSO5 photocoupler
- Long creepage distance (8mm minimum), high speed switching (15Mbps)
- High common mode transient immunity (CMH, CML = ±100KV/µs minimum)
- Pulse width distortion (tPHL − tPLH = 20ns maximum)
- Wide operating power supply voltage range VCC from 4.5V to 30V
- High isolation voltage (BV = 5000Vrms)
- 12mA maximum forward current (ON), 0.8V forward voltage (OFF), 0.5V/μs supply voltage ramp slew rate
技术规格
通道数
1通道
针脚数
5引脚
产品范围
-
光电耦合器封装类型
LSOP
隔离电压
5kV
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
税则号：85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.000001
