打印页面
可订购
制造商标准交货时间:23 周
有货时请通知我
数量 | 价钱 (含税) |
---|---|
1+ | CNY294.260 (CNY332.5138) |
包装规格:每个
最低: 1
多件: 1
CNY294.26 (CNY332.51 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商RENESAS
制造商产品编号YSTBS5D5E10
库存编号2946741
技术数据表
硅芯制造商Renesas
批头数量32位
硅芯系列号Synergy
内核架构ARM
内核子架构Cortex-M4
硅芯号S5D5
套件内容目标板S5D5, USB A型至Micro-B电缆
产品范围-
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述

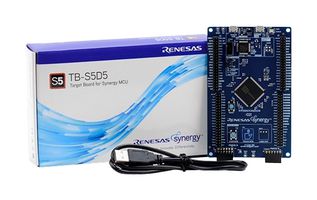

Target board S5D5 (TB-S5D5) is a development kit for the Renesas Synergy™ S5D5 microcontroller in an LQFP-144 package. It is designed to help developers get started with initial firmware development and evaluation of the S5D5 Synergy™ MCU group. It features an 120MHz Arm™ Cortex® M4 core with FPU, 384KB SRAM, 1MB code flash memory, 32KB data flash memory.
- Device USB connector for the main MCU
- Segger J-Link® on-board interface for debugging and programming of the S5D5 MCU
- 2 PMOD connectors allowing use of appropriate PMOD compliant peripheral plug-in modules
- Pin headers for access to power and signals for the main MCU
- MCU reset push button switch
- MCU boot configuration jumper
- Status LED indicating availability of regulated power and connection status of J-Link interface
- Red user LED controlled by the main MCU firmware
- User push button, capacitive touch sensor button, potentiometer are controlled by main MCU firmware
内容
TB-S5D5 board, One USB Type-A to Micro-B cable.
技术规格
硅芯制造商
Renesas
硅芯系列号
Synergy
内核子架构
Cortex-M4
套件内容
目标板S5D5, USB A型至Micro-B电缆
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
批头数量
32位
内核架构
ARM
硅芯号
S5D5
产品范围
-
YSTBS5D5E10 的替代之选
找到 1 件产品
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:United States
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:United States
进行最后一道重要生产流程所在的地区
税则号:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量(千克):.1
