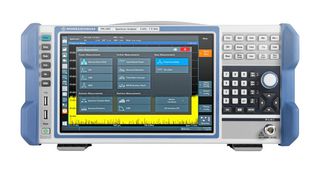

FPL1007-P6
频谱分析仪, 台式, FPL1000, 5kHz 至 7.5GHz, 186 mm, 408 mm, 235 mm
产品范围选择器 (FPL1000)
查看全系列相关产品产品信息
技术文档 (14)
- Technical Data Sheet EN
- Certificate of Conformity EN
- Application Note 2 EN
- Technical Notes & Articles EN
- Selection Guide EN
- Training Material EN
- Quick Start Guide EN
- Reference Manuals EN
- Quick Start Guide EN
- Application Note EN
- Enhanced Product Overview EN
- Programming Manual EN
- User Manual EN
- Manufacturer Catalogue EN
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
FPL1007-P6 is a 5KHz to 7.5GHz signal and spectrum analyser bundle. This spectrum analyser combines excellent RF performance with a small footprint. The light weight and optional battery/DC power make it the ideal instrument for the lab and in the field. Operating the multipoint touchscreen instrument is intuitive and fun.
- One instrument for multiple tasks (spectrum analysis, power meter, analogue, digital signal analysis)
- Fast and easy integration for automated tests
- DANL at 1GHz -166dBm, TOI at 1GHz is typically +20dBm
- Phase noise at 1GHz (10kHz offset) is typically -108dBc (1Hz)
- Spurious response is typically < -70dBc
- MultiView with sequencer
- Spectrum analysis from 5KHz
- High-resolution (1280 x 800 pixel) multi-touch screen
- Portability, optional battery and 12 V/24 V DC power
内容
FPL1007 spectrum analyser, FPL1-B4 OCXO frequency reference, FPL1-B5 additional interfaces, FPL1-B9 internal generator, FPL1-B10 GPIB interface, FPL1-B22 RF preamplifier, FPL1-B25 1dB step attenuator, FPL1-K7 analogue modulation analysis, FPL1-K54 EMI measurement application, Power cable and quick start guide.
