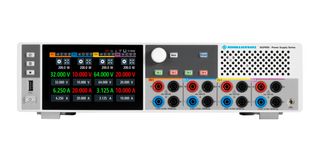

NGP814

NGP814 is an NGP800 series four-channel DC power supply. Synchronizing your outputs, performing waveform tests, and logging data for in-depth analysis – all this becomes easy with the R&S®NGP800 power supply series. An intuitive operating interface and a large touchscreen allow you to enter values much faster and to display statistics in real time. It includes remote sensing terminals, USB and a LAN interface. A user-installable GPIB interface, a digital trigger I/O and an analogue input are optional, making these instruments great on the bench or in an automated test system.

• 2 x 32V/20A, 2 x 64V/10A voltage and current per channel
• Up to four independent floating outputs and all outputs galvanically isolated
• Large 5" high resolution touchscreen
• Supports ramp and arbitrary function, O/P delay, remote sensing, data logging, built-in measurement
• Digital remote control, digital trigger I/O and analogue input full connectivity

内容

DC power supply, Set of power cables, Terminal blocks, Quick start guide.
