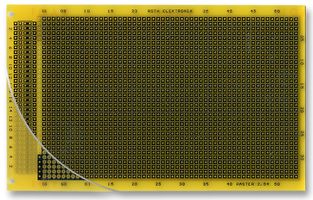

RE201-LFDS

RE201-LFDS is a FR4 1.50mm epoxy fibre-glass PCB Eurocard. If the copper coating is grounded, the electrical components are optimally shielded against the solder side. By this HF, digital and analogue circuits can be built up with high reliability.

• Double-sided is 35µm Cu
• Not plated through holes (NPTH)
• Hole spacing is 2.54 x 2.54mm
• 34 x 54 soldering pads 2.00 x 2.00mm
• Hole diameter is 1.00mm
• Connector 32/64/96-channel DIN 41612 type C
• Component side is totally laminated by copper
• No conducting connection to the component side by etched free holes
• Size is 100 x 160mm
