XB5EV57L4

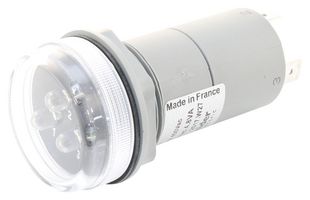

The XB5EV57L4 from Schneider Electric is a Harmony XB5 400VAC, 3 phases voltage indicator pilot light with 3 white LED. This Harmony XB5 complete control buttons features 1KV conforming to IEC 61000-4-5 surge withstand, IP55 (front face) conforming to IEC 60529, IP67 (front face) and IP20 (back face) IP degree of protection, IK10 conforming to IEC 50102 IK degree of protection and EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4 standards.

• Plastic bezel material and plastic fixing collar material
• Round shape of signalling unit head, protected LED source, integral LED bulb base
• Rated supply voltage [Us] range from 360V to 440V AC, 50/60Hz
• Ambient air temperature for operation range from -30°C to 70°C
• Current consumption of 2.6mA, monolithic pilot light type
• Rated impulse withstand voltage of 1KV conforming to IEC 61000-4-5
• 2KV conforming to IEC 61000-4-4 resistance to fast transients
• 10V/m conforming to IEC 61000-4-3 resistance to electromagnetic fields
• 100000h service life at rated voltage and 25°C
• Dimension of 65.5mm x 36mm x 77mm (H x W x D)
