ECHO31/0.5M/SMAM/S/S/17

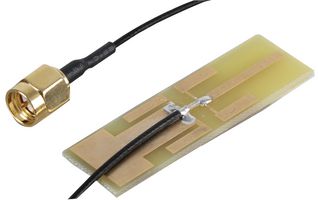

PCB天线, 2.4GHz至5.58GHz, 2.8 VSWR, 3dBi增益, 垂直极化, SMA连接器
5 有货
需要更多？
5 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY136.440 (CNY154.1772) |
| 5+ | CNY127.180 (CNY143.7134) |
| 10+ | CNY117.920 (CNY133.2496) |
| 50+ | CNY108.650 (CNY122.7745) |
| 100+ | CNY99.390 (CNY112.3107) |
| 250+ | CNY90.120 (CNY101.8356) |
包装规格：每个
最低: 1
多件: 1
CNY136.44 (CNY154.18 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述
The Echo 31 from Siretta is a Dual Band WiFi WLAN dedicated PCB antenna. This multiband antenna comes into its own when a congested 2.4Ghz network is a limitation and the device can utilise the 5GHz alternative band. The Echo 31 antenna can be used with WiFi, Bluetooth, Zigbee and ISM based applications. A small footprint size of 50x15mm, the Echo 31 is perfect for those applications where internal space for components is limited or when using an external antenna is simply not appropriate. Common applications for the Echo 31 include waterproof / water tight designs, customer self service kiosks, and low power Zigbee.
- Maximum input power: 50W
- Impedance: 50 Ohm
- Gain: 2 - 3dBi
- Connector: SMA male reverse polarity
- Operating temperature: -20 to +70°C
- Storage temperature: -35°C to +75°C
- Cable length: 1.37m 6Ghz Coax
- Dimension (LxWxH): 50x15x0.8mm
技术规格
天线类型
PCB
最高频率
5.58GHz
增益
3dBi
输入功率
50W
天线极化
垂直
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
最低频率
2.4GHz
天线安装
SMA连接器
电压驻波比(VSWR)
2.8
输入阻抗
50ohm
产品范围
Echo
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Switzerland
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Switzerland
进行最后一道重要生产流程所在的地区
税则号：85291069
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.05
