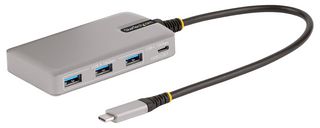

HB31C3A1CDPPD3

The Startech HB31C3A1CDPPD3 is a unique hub that provides four USB 3.2 Gen 2 ports, including a USB-C port that supports DP Alt Mode, enabling 4K video output to a USB-C monitor. The USB-C port also provides 12W output for charging USB devices. The hub is also equipped with a dedicated USB-C Power Delivery 3.0 port that supports up to 100W passthrough charging. Compatible with all major operating systems, the Hub is automatically configured and installed upon connection to a host computer.

• Four port expansion hub that provides 3x USB-A, 1x USB-C DP Alt Mode port & 1x USB-C PD port
• USB 3.2 Gen 2 transfer speeds up to 10Gb/s
• USB-C DP Alt Mode port supports video out up to 4K 60Hz
• Dedicated USB-C Power Delivery port supports up to 100W passthrough charging (18W reserved for hub)
• Integrated overcurrent protection (OCP) to protect connected devices
• Extra long 300mm cable with TPE jacket to reduce port strain
• OS Independent, no additional drivers or software required
• Dimensions (HxWxD): 16x54x98mm
• 2 Year manufacturer warranty

内容

Hub and user guide

注释

Note: Host device must support DP Alt Mode, hub requires a power adaptor (not included) connected to provide PD passthrough to power a USB-C monitor.
