M24SR-DISCO-PREM

套件, DISCOVERY, M24SR系列动态NFC/射频识别TAK, 蓝牙模块, 带音频输出

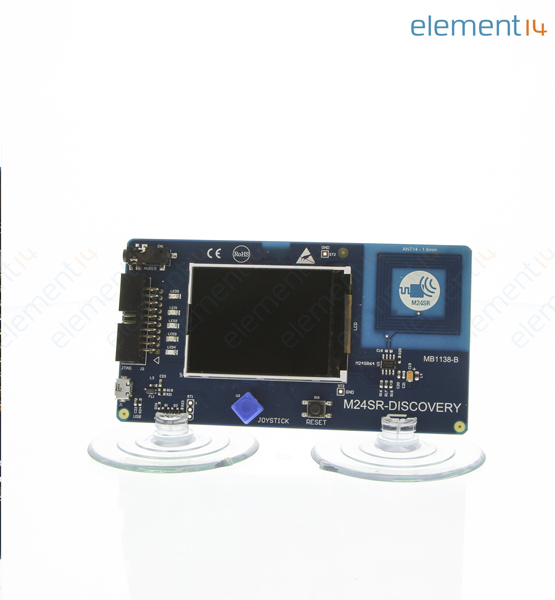

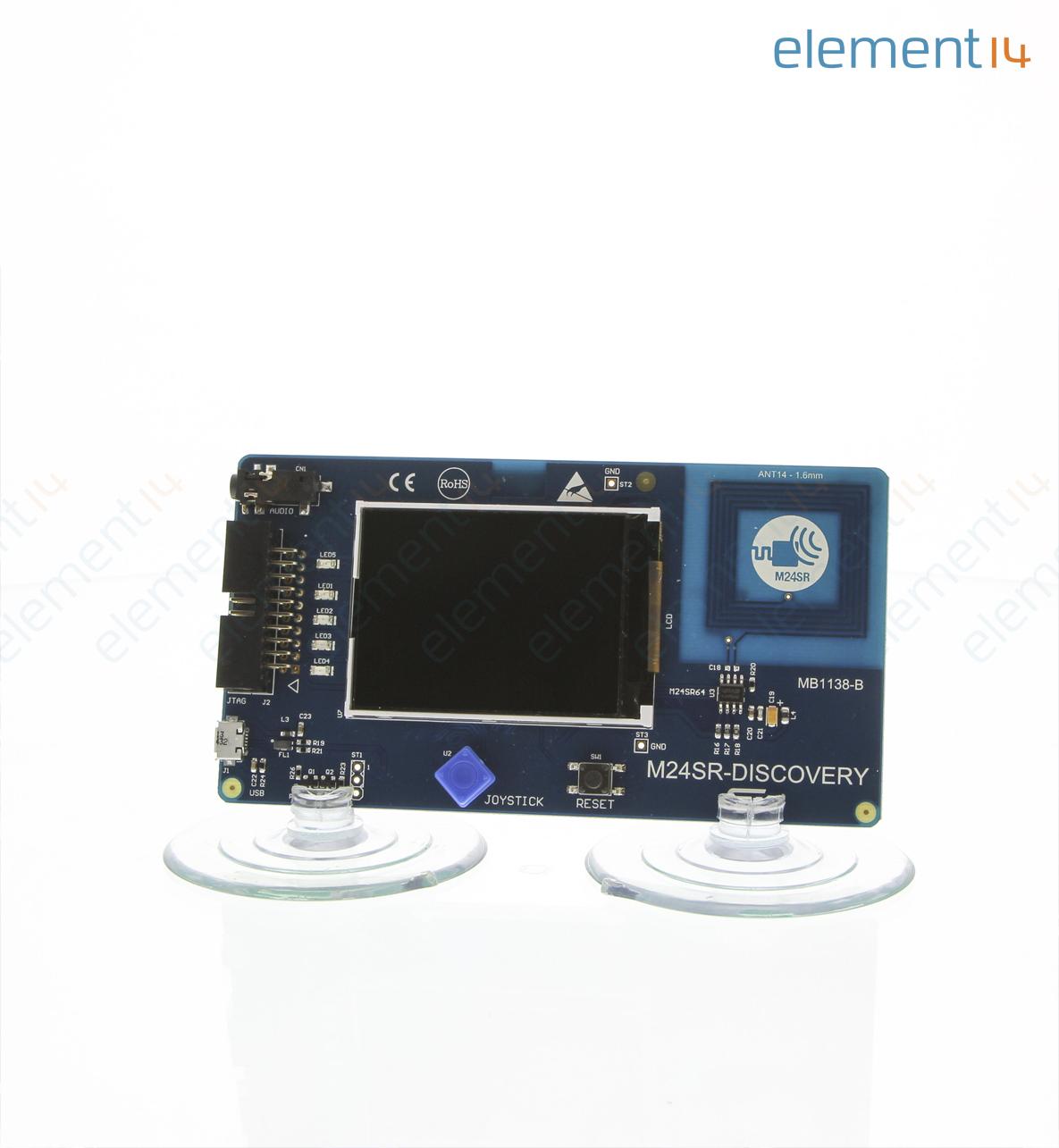

STMICROELECTRONICS M24SR-DISCO-PREM
STMICROELECTRONICS M24SR-DISCO-PREM
360°
×
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
M24SR-DISCO-PREM
库存编号
2396535
查看所有技术文档

产品概述

The M24SR-DISCO-PREM is a Demonstration Kit to evaluate the features and capabilities of the M24SR series and is based on the M24SR64 device. The M24SR64 device is a dynamic NFC/RFID tag IC with a dual interface. It embeds a 64 Kbits EEPROM memory. It can be operated from an I²C interface or by a 13.56MHz RFID reader or an NFC phone. The I²C interface uses a two-wire serial interface, consisting of a bidirectional data line and a clock line. The RF protocol is compatible with ISO/IEC 14443 Type A and NFC Forum Type 4 Tag. The board is powered through the USB bus. It also includes a microcontroller STM32F103 to drive the EEPROM via I²C and the LCD screen via SPI bus.
  • 31 x 30mm 13.56MHz double layer inductive antenna etched on PCB (ANT14)
  • STM32F103RGT6 64LQFP 32-bit microcontroller with 1MB flash memory
  • USB micro-B connector for board powering
  • JTAG connector for microcontroller firmware upgrade and debug
  • Bluetooth module with audio outputs connected to 3.5mm jack
  • Heatset

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
STMicroelectronics

:
M24SR64, STM32F103RGT6

:
通信和网络

:
射频识别RFID标签

:
ARM

:
Cortex-M3

:
STM32F1

:
高级版Discovery 套件

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。
