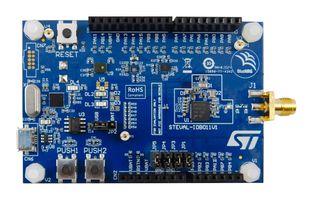

STEVAL-IDB011V1
评估板, BlueNRG-355MC, 无线通信, 蓝牙低功耗, SoC
已停产
产品信息
制造商产品编号STEVAL-IDB011V1
库存编号3526113
技术数据表
硅芯制造商STMicroelectronics
硅芯号BlueNRG-355MC
套件应用类型无线通讯
应用系统子类型蓝牙低能, 片上系统
套件内容评估板BlueNRG-355MC, 软件套件
产品范围-
SVHC(高度关注物质)No SVHC (17-Dec-2015)
产品概述
- Evaluation platform based on BlueNRG-355MC system-on-chip
- Bluetooth® low energy evaluation board based on the BlueNRG-LP Bluetooth low energy system-on-chip
- Associated BlueNRG-LP development kit SW package including firmware and documentation
- Up to +8dBm programmable output power (at antenna connector)
- Excellent receiver sensitivity -96dBm at1Mbps, -103dBm at 125bps long range)
- Very low power consumption of 3.4mA RX at sensitivity level and 4.3mA TX at +0dBm
- Supports master, secondary and simultaneous master-and-secondary roles
- Bluetooth low energy data length extension, 2Mbps, long range and extended advertising and scanning
- SMA connector for antenna or measuring equipment
注释
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
硅芯制造商
STMicroelectronics
套件应用类型
无线通讯
套件内容
评估板BlueNRG-355MC, 软件套件
SVHC(高度关注物质)
No SVHC (17-Dec-2015)
硅芯号
BlueNRG-355MC
应用系统子类型
蓝牙低能, 片上系统
产品范围
-
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Italy
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Italy
进行最后一道重要生产流程所在的地区
税则号：84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (17-Dec-2015)
下载产品合规证书
产品合规证书
重量（千克）：.0627
