STEVAL-STRKT01

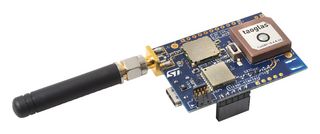

STEVAL-STRKT01 is a LoRa® IoT tracker is designed and optimized to implement the latest technologies in IoT tracker applications such as asset, people and animal tracking as well as fleet management. The evaluation board simplifies prototyping, evaluation and development of tracker innovative solutions. It comes with comprehensive software, firmware libraries, tools, battery, cables and plastic case. The board also transmits and receives data, configurations and events to and from the cloud over a LoRaWAN™ network, or stores data locally in the M95M02-DR EEPROM. The STEVAL-STRKT01 is a LiPo battery operated solution and implements low power strategies thanks to an enhanced power/battery management design, based on the STBC02 battery charger and the ST1PS01 step-down converter, to ensure long battery autonomy. The STUSB1600A addresses 5 V USB Type-C port management and offers high voltage protection against short circuits.

• Optimized IoT tracker solution over LoRaWAN™ NW w/ simultaneous multi-constellation GNSS positioning
• Battery operated solution with smart power management architecture
• First IoT ST reference embedding a USB Type-C connector and a port controller
• Environmental and motion sensors
• Data logging
• STM32Cube function pack (FP-ATR-LORA1)
• High flexibility to cover different application profiles ( asset tracker, people and animal tracker)
• 2006/66/EC Directive compliant
• Contains transmitter module FCC ID: VPYCMABZ and IC ID: 772C-CMABZ

注释

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
