STM32G0316-DISCO
Discovery套件, STM32G031J6M6U, 32位, ARM Cortex-M0+
45 有货
需要更多？
45 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY85.760 (CNY96.9088) |
包装规格：每个
最低: 1
多件: 1
CNY85.76 (CNY96.91 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商产品编号STM32G0316-DISCO
库存编号3247675
技术数据表
硅芯制造商STMicroelectronics
批头数量32位
硅芯系列号STM32
内核架构ARM
内核子架构Cortex-M0+
硅芯号STM32G031J6M6U
套件内容Discovery套件STM32G031J6M6U
产品范围-
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述

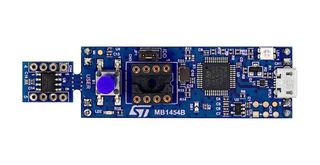

The STM32G0316-DISCO Discovery kit helps to discover features of STM32G0 in SO8 package. This discovery kit offers one SO8 to DIL8 module designed with the STM32G031J6 microcontroller and allows the user to develop and share applications. It includes an on-board ST-LINK/V2-1 to debug and program the embedded STM32 microcontroller. The STM32G0316-DISCO Discovery kit is operated by plugging it into a PC through a standard USB Type-A to Micro-B cable.
- STM32G031J6 Arm Cortex M0+ core-based MCU, featuring 32KB of flash memory and 8KBs of SRAM
- 1 user LED
- 1 reset/user push-button
- ST-LINK Micro-B USB connector and DIL8 socket to ease programming of the STM32 MCU
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
- Comprehensive free software libraries and examples available with the STM32Cube
- Supports IAR™, Keil® and GCC-based IDEs
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
硅芯制造商
STMicroelectronics
硅芯系列号
STM32
内核子架构
Cortex-M0+
套件内容
Discovery套件STM32G031J6M6U
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
批头数量
32位
内核架构
ARM
硅芯号
STM32G031J6M6U
产品范围
-
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Italy
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Italy
进行最后一道重要生产流程所在的地区
税则号：84733020
US ECCN:3A991.a.2
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.0475
