需要更多?
数量 | 价钱 (含税) |
---|---|
1+ | CNY307.120 (CNY347.0456) |
5+ | CNY304.020 (CNY343.5426) |
产品信息
产品概述

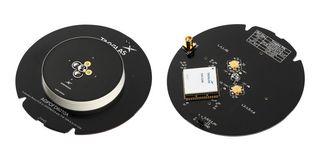

AGPDFD6010A is an evaluation board for GPDF6010.A with TFM.120A & 2x HC125AØ101×1.59mm circular PCB. The optimum active electronics design for passive GNSS L1/L2/L5/L-band antenna integrated TFM module and hybrid coupler. The single-package solution combines impedance matching, filter efficiency and low noise design for easy, drop-in use with any antenna or GNSS receiver. Integrated pre-filters deliver exceptional out-of-band rejection across multiple band configurations and neighbouring interference to properly set noise figure. Cascaded LNAs, pre-filters and optimized impedance matching deliver sufficient gain to the GNSS receiver without signal-to-noise overload. Small footprint and low-profile design save valuable real estate without the need for external components and routing. The 2+ years of development by antenna and RF design experts, delivering the highest levels of integration, manufacturability and robustness in a single package.
- Ease-of-integration
- Low-noise system design
- Dual-gain stage architecture
- Low-profile form factor
- Accelerated development cycles
- Bands covered: BeiDou (B1/B2a), GPS/QZSS (L1/L5), GLONASS (G1), Galileo (E1/E5a), L band corrections
- Dual pin, dual feed, 4-pin configuration
- Dimension is 45 x 45 x 10mm
技术规格
Taoglas
无线通讯
-
-
-
GPDF6010.A
GNSS 堆叠式贴片天线
-
评估板 GPDF6010.A,带 TFM.120A 和 2x HC125A 101mm 直径 x 1.59mm 圆形 PCB
No SVHC (21-Jan-2025)
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地:Taiwan
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
