打印页面

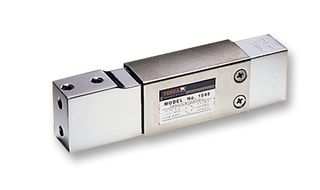

图片仅用于图解说明,详见产品说明。
2 有货
需要更多?
2 件可于 5-6 个工作日内送达(英国 库存)
数量 | 价钱 (含税) |
---|---|
1+ | CNY1,641.370 (CNY1,854.7481) |
5+ | CNY1,575.430 (CNY1,780.2359) |
10+ | CNY1,507.780 (CNY1,703.7914) |
25+ | CNY1,456.630 (CNY1,645.9919) |
50+ | CNY1,414.200 (CNY1,598.046) |
100+ | CNY1,335.450 (CNY1,509.0585) |
包装规格:每个
最低: 1
多件: 1
CNY1,641.37 (CNY1,854.75 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商产品编号1040M-50M-F
库存编号7000911
产品范围1040 Series
技术数据表
负载能力50kg
负荷传感器类型单点
电源电压10VDC
承重能力50kgf
激励电压最小值10VDC
激励电压最大值15VDC
传感器输出 mV/V2
传感器输出类型按比例
连接类型线缆
线性-
电缆长度 - 公制1m
电缆长度 - 英制3.3ft
工作温度最小值-20°C
工作温度最高值70°C
产品范围1040 Series
产品概述
The 1040M-50M-F from Vishay is a low capacity single point aluminium load cell. This low profile single point load cell is designed for direct mounting of low cost weighing platforms. Its small physical size combined with high accuracy and low cost makes these load cells ideally suited for retail, bench and counting scales. An optional special humidity resistant protective coating assures long term stability over the entire compensated temperature range. The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in lead resistance due to temperature change or cable extension is achieved by feeding this feedback voltage.
- Load capacity is 50kg
- Available with metric and UNC threads
- Single point 400mm x 400mm platform
- IP65 protection standard
- OIML R60 and NTEP approved
- EEx ia IIC T4 - ATEX hazardous area approvals are also available
- FM approval available
- Operating temperature range from -20°C to 70°C
- Input Impedance is 415ohm
- Rated output of 2.0mV/V
技术规格
负载能力
50kg
电源电压
10VDC
激励电压最小值
10VDC
传感器输出 mV/V
2
连接类型
线缆
电缆长度 - 公制
1m
工作温度最小值
-20°C
产品范围
1040 Series
负荷传感器类型
单点
承重能力
50kgf
激励电压最大值
15VDC
传感器输出类型
按比例
线性
-
电缆长度 - 英制
3.3ft
工作温度最高值
70°C
技术文档 (1)
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Great Britain
进行最后一道重要生产流程所在的地区
税则号:84239090
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:稍后通知
RoHS 邻苯二甲酸盐合规:稍后通知
下载产品合规证书
产品合规证书
重量(千克):.5
