产品信息
产品概述

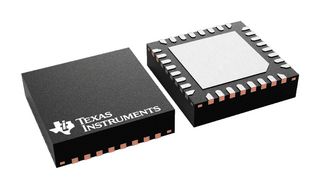

MUX36D08IRSNR is a MUX36D08 (MUX36xxx) modern complementary metal-oxide semiconductor (CMOS) precision analogue multiplexer (mux). All digital inputs has transistor-transistor logic (TTL) compatible thresholds, providing both TTL and CMOS logic compatibility when operating in the valid supply voltage range. This has very low and off-leakage currents, allowing this multiplexer to switch signals from high input impedance sources with minimal error. Applications includes factory automation and industrial process control, programmable logic controllers (PLC), analogue input modules, ATE Test equipment, digital multimeters, and battery monitoring systems.
- 8.7pF low on-capacitance, 1pA low input leakage, 0.31pC low charge injection
- Rail-to-rail operation, break-before-make switching action
- Wide supply range from ±5V to ±18V, 10V to 36V
- 125ohm low on-resistance, 97ns transition time
- EN pin connectable to VDD, logic levels 2V to VDD
- 45µA low supply current, 2000V ESD protection HBM
- 32pin QFN package, temperature range from -40 to 125°C
技术规格
模拟多路复用器
单&双电源
± 5V至 ± 18V, 10V至 36V
32引脚
125ohm
-
-
-40°C
-
MSL 2 - 1年
2电路
200ohm
WQFN
2放大器
200ohm
8:1
表面安装
125°C
-
No SVHC (27-Jun-2018)
技术文档 (1)
法律与环境
进行最后一道重要生产流程所在的地区原产地:Malaysia
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
