OP950
光电二极管, 1 nA, 935 nm, 径向引线-2
25 有货
需要更多？
25 件可于 5-6 个工作日内送达(英国 库存)
该库存量售罄后，将不再备货
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY5.890 (CNY6.6557) |
| 10+ | CNY5.750 (CNY6.4975) |
| 25+ | CNY5.600 (CNY6.328) |
| 50+ | CNY5.460 (CNY6.1698) |
| 100+ | CNY5.310 (CNY6.0003) |
| 500+ | CNY5.170 (CNY5.8421) |
包装规格：每个
最低: 1
多件: 1
CNY5.89 (CNY6.66 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品概述

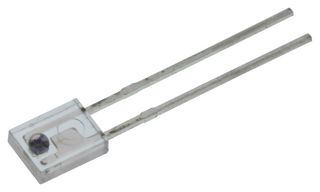

Each <bold>OP950</bold> device consists of a PIN silicon photodiode molded in an epoxy packge that allows spectral response from visible to infrared light wavelengths. The side-looking package is designed for easy PCBoard mounting and space-limited applications. The OP950 has a 95° wide receiving angle that provides relatively even reception over a large area and is mechanically and spectrally matched to OPTEK’s GaAs and GaAiAs series of infrared emiƫng diodes.
- Epoxy package
- Linear response vs. irradiance
- Fast switching time
- Choice of wide or extra wide receiving angle
- Side-looker package
- Small package style ideal for space-limited applications
技术规格
针脚数
2引脚
峰值灵敏度波长
935nm
暗电流
1000pA
工作温度最高值
100°C
汽车质量标准
-
SVHC(高度关注物质)
No SVHC (27-Jun-2024)
二极管封装类型
径向引线
半灵敏度角度±
-
工作温度最小值
-40°C
产品范围
-
湿气敏感性等级
-
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Mexico
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Mexico
进行最后一道重要生产流程所在的地区
税则号：85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下载产品合规证书
产品合规证书
重量（千克）：.000163
