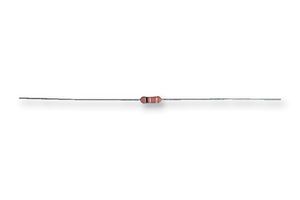

PR03000207502JAC00
通孔电阻器, 75 kohm, PR03 Series, 3 W, ± 5%, 轴向引线, 750 V
需要更多？
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY4.400 (CNY4.972) |
| 10+ | CNY2.820 (CNY3.1866) |
| 50+ | CNY2.140 (CNY2.4182) |
| 100+ | CNY1.910 (CNY2.1583) |
| 200+ | CNY1.620 (CNY1.8306) |
| 500+ | CNY1.330 (CNY1.5029) |
产品信息
产品概述
The PR03000207502JAC00 is a 75kΩ leaded metal film Power Resistor with pure tin plating provides compatibility with lead (Pb)-free and lead containing soldering processes. A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper or copper-clad iron are welded to the end-caps. The resistor is coated with a red, non-flammable lacquer which provides electrical, mechanical and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
- Defined interruption behaviour
- Lead-free solder contacts
技术规格
75kohm
3W
轴向引线
金属膜
高功率
19.5mm
-55°C
-
PR03 Series
± 5%
750V
± 250ppm/°C
5.2mm
-
155°C
No SVHC (21-Jan-2025)
