RAIK060I11318LB692

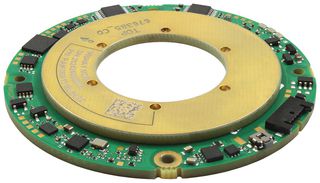

RAIK060I11318LB692 is a rotational absolute inductive kit encoder. It is especially dedicated to motor drive, to robot’s position and industrial motion control with accurate positioning.

• Off-axis rotational absolute inductive encoder, rotation speed up to 10000rpm, 60mm diameter
• High repeatability, high precision, high resolution, single or multi-turns variant
• Embedded self-calibration, easy assembly with status LED colours
• Memorization of last position before power off, built-in self-monitoring
• Not sensitive to external magnetic fields (no hall effect cells), electrical fields and temperature
• Not sensitive to moisture and pollution
• Especially dedicated for harsh conditions (vibrations, shocks, EMC…)
• 5VDC ±0.25VDC voltage power supply (on sensor connector)
• ≤ 100mA supply current at 5VDC, ≥ 13bits (0.044°) accuracy at 25°C
• Standard operating temperature range from -40°C to +105°C

警告

Do not damage the rotor disk surface. Do not use cleaning product or chemical product.
