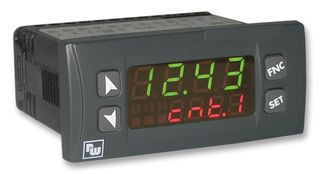

ZD327401

The ZD327401 is a 4-digit Counter/Preset Counter made of black and robust plastic case, PC ABS self-extinguishing housing. The compact small counter can be set in two different modes of single or double counter, all with independent setting. Three universal digital inputs are available (NPN/PNP/contact) can be used for bidirectional encoders reading, UP/DOWN counter function, LOCK/HOLD to lock or hold current visualization. One input is also analogue in order to allow set-point modification by an external potentiometer. Due to the two different modes and the scaling features, the counter is usable for a lot of different applications. In addition to an excellent cost effectiveness and high quality, the counter offers a rugged, compact housing and a brilliant display.

• Universal AC-to-DC power supply
• Easy programming by front keys or software
• Two relay outputs
• 2-line LED display
• Input frequency up to 100kHz
• UL94V-0 Flammability rating
