功率电感(SMD), 3.3 µH, 9 A, 屏蔽, 8 A, WE-HCI Series

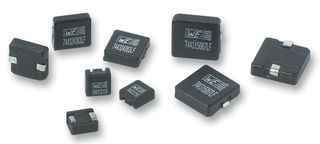

图片仅用于图解说明，详见产品说明。
产品信息
制造商产品编号744314330
库存编号1636196RL
产品范围WE-HCI Series
技术数据表
电感值3.3µH
电感类型High Current
真有效值电流 (Irms)9A
电感结构屏蔽
饱和电流 (Isat)8A
产品范围WE-HCI Series
电感器外壳/封装-
直流电阻最大值0.009ohm
电感公差± 20%
产品长度7mm
产品宽度6.9mm
产品高度4.8mm
SVHC(高度关注物质)No SVHC (21-Jan-2025)
产品概述
Wurth Electronics WE-HCI series is known within the electronics market to be the top of the line, high-current inductor family. Due to increased demand for smaller packages in even higher currents, Wurth Electronics offers numerous sizes ranging from 5x5x4 mm up to 22x22x12 mm, thus allowing you to find the optimum size for your circuit design. The high-current flat wire inductors offer the industry’s lowest DCRs for maximum performance in your DC/DC converter.
- Magnetically shielded
- Flat wire coil for low losses at high frequency
- Low stray field
- Operating temperature: -40°C to +125°C / +150°C / +155°C
- Recommended solder profile: Reflow
技术规格
电感值
3.3µH
真有效值电流 (Irms)
9A
饱和电流 (Isat)
8A
电感器外壳/封装
-
电感公差
± 20%
产品宽度
6.9mm
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
电感类型
High Current
电感结构
屏蔽
产品范围
WE-HCI Series
直流电阻最大值
0.009ohm
产品长度
7mm
产品高度
4.8mm
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.001197
