1598RDBK
塑料机壳, 防火, 仪器, ABS, 58 mm, 198 mm, 179.75 mm, IP54
可订购
制造商标准交货时间：10 周
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY301.900 (CNY341.147) |
| 5+ | CNY270.150 (CNY305.2695) |
| 10+ | CNY252.510 (CNY285.3363) |
| 20+ | CNY247.960 (CNY280.1948) |
包装规格：每个
最低: 1
多件: 1
CNY301.90 (CNY341.15 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述

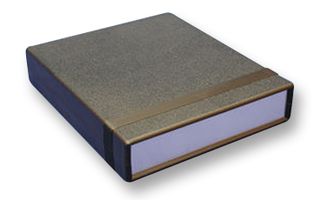

The 1598RDBK is a shielded electronic instrument Enclosure made of flame retardant ABS plastic ideally suited for mounting printed circuit boards. Interior of each enclosure half is specially masked and sprayed with an RFI/EMI copper conductive coating. The cases halves are secured with M3 x 0.5-inch x 10mm Philips machine screws threaded into tapped integral brass bushings. It is perfectly suited for applications with repetitive assembly and disassembly are required.
- UL94V-0 Flammability rating
- Coating manufacturer specifies an attenuation of more than 75db from 1MHz to 1GHz
- Two sets of vertical 1.5mm PC board guides are moulded into case halves front and rear
- Front and rear panels are 1.6mm brushed aluminium with protective paper on one side
- Integral horizontal PC card mounts on Eurocard centres
- PC card standoffs moulded into top and bottom half of enclosure - require #6 x 1/4" screws
内容
Top and bottom cover, Front and end aluminium panels (alloy 5052-H32, SPV coating on one side), 2x Cover screws and 4x Rubber feet.
技术规格
外壳类型
仪器
外部高度- 公制
58mm
外部深度- 公制
179.75mm
主体颜色
黑色
外部高度 -英制
2.28"
外部深度 -英制
7.08"
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
外壳材质
ABS
外部宽度- 公制
198mm
IP密封等级
IP54
NEMA额定值
-
外部宽度 -英制
7.8"
产品范围
-
技术文档 (1)
相关产品
找到 2 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Canada
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Canada
进行最后一道重要生产流程所在的地区
税则号：39231090
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.44
