2280S-32-6
台式电源, 可编程, 1输出, 0 V, 32 V, 0 A, 6 A
- 制造商：
- KEITHLEY KEITHLEY
- 制造商产品编号:
- 2280S-32-6
- 库存编号
- 2773945
- 产品范围
- 2280S Series
- 技术数据表:
- 2280S-32-6 Datasheet
产品范围选择器 (2280S Series)
查看全系列相关产品产品信息
技术文档 (5)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述

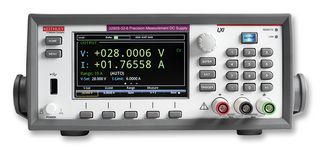

2280S-32-6 from Keithley is a 2280S series 32V, 6A precision measurement low noise programmable DC power supply. It can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps. This power supply uses linear regulation to ensure low output noise and superior load current measurement sensitivity. A high resolution colour TFT screen displays a wide range of information on measurement. Soft key buttons and a navigation wheel combine with the TFT display to provide an easy to navigate user interface that speeds instrument set-up and operation. In addition, built-in plotting functions allow monitoring trends such as drift. It provides flexibility required for both benchtop and automated test system applications. The dimension (W x H x D) is 213.8 x 88.4 x 383.3mm (rack, w/o boot), 255.3 x 107.2 x 415mm (bench, w/boot) and weight is 10.85Kg.
- 100/120/220/240V ±10% supply, measures small load currents with 0.05% accuracy and 10nA resolution
- Sink up to 0.45A to discharge voltage quickly, measures voltage and current with 6½ digit resolution
- Captures peak of a load current burst as short as 140µs using external triggering
- OVP, OCP, OTP protection and output up to 192W of low noise, linear regulated power
- Programmable rise and fall times eliminate voltage overshoot and undershoot transients
- Built-in graphing simplifies analysing trends or displaying voltage or current waveforms
- UL61010-1 3rd ed 2012, UL61010-2-030:2012, CAN/CSA C22.2 No. 61010-1 3rd ed 2012 standards
- GPIB, USB and LAN interfaces, programmable output sequences reduce test times
- Built-in web page allows automated control, monitoring and data logging
- Digital I/O for direct communication, 0 to 40°C operating temperature
内容
2280S-32-6 DC power supply, Quick start guide, KickStart quick start guide, User documentation CD, LAN crossover cable, Power cord, Rear panel mating, Connector with cover.
附注
此外, 我们还为此产品提供校准服务。可选择标准认证服务, 或国际认可的UKAS认证校准。请访问我们的校准网页去了解更多详情。
警告
Do not lift the series 2280 from the front bezel. Lifting the instrument by the front bezel can cause instrument damage.
