MC002118

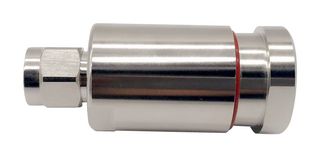

射频/同轴连接器, 螺旋式耦合, N型同轴, 直型隔板安装插头, 压接, 50 ohm, 7/8", 黄铜

MULTICOMP PRO MC002118
×
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
MC002118
库存编号
2846772
技术数据表:
MC002118   数据表
查看所有技术文档

产品概述

The MC002118 from Multicomp Pro is a N Connector screw-type coupling that provides a sturdy reliable connection. Features a nickel plated brass body, nut and bush. Gold plated brass centre contact, PTFE insulator and rubber seal.
  • Screw-type coupling
  • Impedance 50 ohm
  • Frequency 0-11 GHz
  • Insulation resistance ?5000 Mohm
  • Dielectric withstanding voltage 1500 V
  • Working voltage of 1000 V max.

应用

工业

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
N型同轴

:
直型隔板安装插头

:
压接

:
50ohm

:
7/8"

:
黄铜

:
镀金触芯

:
11GHz

:
电缆安装

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

500 有货 需要更多?

500 英国 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY223.03 ( 不含税  ) CNY252.0239 ( 含税 )

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
数量 价钱 (不含税) (含税) 您所支付金额(含增值税) (不含税)


1+ CNY223.03 CNY252.0239
