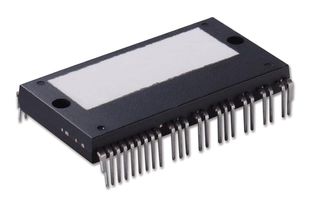

FSAM10SH60A.

The FSAM10SH60A is a 10A PCB Motion SPM® 2 Smart Power Module provides a fully-featured, high-performance inverter stage for AC Induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including undervoltage lockouts, over-current shutdown, thermal monitoring and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.

• UL Certified no. E209204 (UL1557)
• Low-loss, short-circuit rated IGBTs
• Low thermal resistance using ceramic substrate
• Single-grounded power supply
• Built-in NTC thermistor for temperature monitoring
• 0.5kW/100 to 253VAC Inverter power rating

应用

电机驱动与控制
