T816126A1S101CEU
引脚针座, 线至板, 2.54 mm, 2 排, 26 触点, 通孔安装, T816
产品范围选择器 (T816)
查看全系列相关产品产品概述

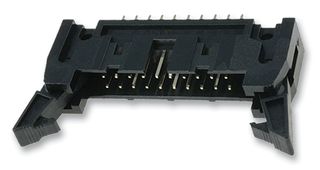

The T816126A1S101CEU is a 26-way 2-row 2.54mm straight through-hole Header with short latch. This T816 series wire-to-board connector has gold flash over 50µinch nickel plated brass contacts, black housing and a glass-reinforced PBT insulator.
- 20mR at 1ADC Maximum contact resistance
- 1000MR at 500VDC Minimum insulation resistance
- 500VAC at 60Hz for one minute Dielectric withstanding voltage
- 3A Current rating per contact
- 250VAC at 60Hz Voltage rating
应用
工业
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
3,344 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
交付周期内有额外库存， 交付周期大约为 22-7-25
3,344 UK 有库存，可在 4-5 个工作日内发货
| 数量 | 单价（含增值税） | 您所支付金额（含增值税） |
|---|---|---|
| 1+ | CNY29.05 (CNY32.83) | ( ) |
| 10+ | CNY27.60 (CNY31.19) | ( ) |
| 100+ | CNY26.21 (CNY29.62) | ( ) |
| 500+ | CNY24.90 (CNY28.14) | ( ) |
| 1000+ | CNY23.66 (CNY26.74) | ( ) |
