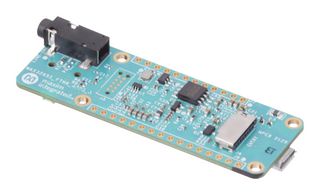

MAX32655FTHR#

MAX32655FTHR# is a rapid development platform to help engineers quickly implement ultra low-power wireless solutions using MAX32655 Arm© Cortex®-M4F and Bluetooth® 5.2 Low Energy (LE). The board also includes the MAX20303 PMIC for battery and power management. The form factor is a small 0.9in x 2.6in dual-row header footprint that is compatible with Adafruit Feather Wing peripheral expansion boards. The board includes a variety of peripherals, such as a digital microphone, low power stereo audio CODEC, 128MB QSPI Flash, micro SD card connector, RGB indicator LED, and pushbutton. The MAX32655FTHR provides a power-optimized flexible platform for quick proof-of-concepts and early software development. Typical applications include asset tracking, fitness/health and medical wearables, hearables, industrial sensors and wireless computer peripherals and I/O devices.

• 32bit RISC-V coprocessor to offload timing-critical Bluetooth processing
• 512KB flash memory, 128KB SRAM, 16KB cache
• MAX20303 Wearable PMIC with fuel gauge
• Charge from USB
• On-board DAPLink debug and programming Interface for Arm cortex-M4F
• Breadboard compatible headers
• Micro USB connector, micro SD card connector
• SWD debugger, virtual UART console
