MAX32666FTHR#

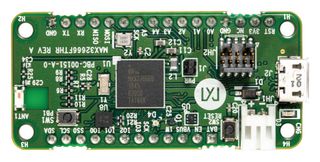

MAX32666FTHR# board is a rapid development platform to help engineers quickly implement battery optimized Bluetooth® 5 solutions with the MAX32666 Arm® Cortex®-M4 processor with FPU. The board also includes the MAX1555 1-Cell Li+ battery charger for battery management. The form factor is a small 0.9in by 2.0in dual-row header footprint that is compatible with breadboards and off-the-shelf peripheral expansion boards. The board also includes a variety of peripherals, such as a micro SD card connector, 6-axis accelerometer/gyro, RGB indicator LED, and pushbutton. This platform provides power-optimized flexible for quick proof-of-concepts and early software development. Typical applications include connected home, gaming devices, hearables, industrial sensors, payment/fitness/medical wearables and telemedicine.

• Evaluation kit for the MAX32666
• On board MAX32666 Arm® Cortex®-M4 processor with FPU
• MAX1555 1-cell Li+ battery charger
• Breadboard compatible headers
• 10-pin cortex debug header
• Micro USB connector and micro SD card connector
• RGB indicator LED and user pushbutton
• 6-axis accelerometer/gyro
• Bluetooth surface mount antenna
• SWD/MAXDAP debug interface
