38104-E020-G00FL

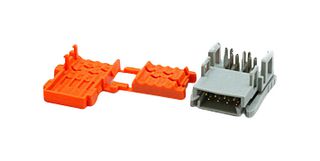

IDC连接器, 2.54 mm, 1排, 4 触点, 电缆安装
100 有货
需要更多？
100 件可于 5-6 个工作日内送达(英国 库存)
该库存量售罄后，将不再备货
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY36.800 (CNY41.584) |
| 10+ | CNY30.900 (CNY34.917) |
| 100+ | CNY29.390 (CNY33.2107) |
| 200+ | CNY25.710 (CNY29.0523) |
| 500+ | CNY24.990 (CNY28.2387) |
| 1000+ | CNY21.320 (CNY24.0916) |
| 2000+ | CNY19.810 (CNY22.3853) |
包装规格：每个
最低: 1
多件: 1
CNY36.80 (CNY41.58 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商3M
制造商产品编号38104-E020-G00FL
库存编号3499559
产品范围381 Series
技术数据表
IDC连接器类型-
触芯类型-
节距2.54mm
排数1排
触芯数量4触点
连接器安装电缆安装
触点材料铜合金
触芯镀层镀金触芯
产品范围381 Series
SVHC(高度关注物质)To Be Advised
产品概述
3M™ link connector, 381 series featuring IDC termination offer a time-saving, reliable and field-installable wiring solution. It is suitable for wiring applications using 3-4 wires 22 to 16AWG and requiring 16V, 6.0A max. Common applications are branching and splicing into the existing network.
- Single-action IDC termination connector for T-branching and splicing of sensor and field networks
- Easy, labour saving and reliable IDC termination
- Easy field termination with No special wire preparation – No stripping, tinning or special tooling
- Compatible with conductor sizes 18 to 22AWG
- Can terminate with a common pair of pliers
- Semi-transparent color-coded covers for wire inspection and wire retention
- Hermaphroditic four-point contact mating structures
- T-tap termination enable mid-cable terminations without special preparation/handling of wires
- 5 Amp maximum current carrying capability per contact
- Latching mechanism maintains a reliable interconnection in demanding field applications
技术规格
IDC连接器类型
-
节距
2.54mm
触芯数量
4触点
触点材料
铜合金
产品范围
381 Series
触芯类型
-
排数
1排
连接器安装
电缆安装
触芯镀层
镀金触芯
SVHC(高度关注物质)
To Be Advised
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
税则号：85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:To Be Advised
下载产品合规证书
产品合规证书
重量（千克）：.003538
