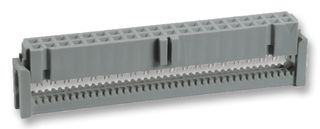

89140-0101
IDC连接器, IDC插座, 母, 2.54 mm, 2排, 40 触点, 电缆安装
- 制造商：
- 3M 3M
- 制造商产品编号:
- 89140-0101
- 库存编号
- 2216913
- 产品范围
- 891系列
- 也称为:
- GTIN UPC EN: 00054007515630
- 技术数据表:
- 89140-0101 Datasheet
产品范围选择器 (891系列)
查看全系列相关产品产品概述
The 89140-0101 is a 40-way 2-row 0.100 x 0.100-inch IDC Ribbon Cable Socket for 0.050-inch pitch cable with gold-plated phosphor bronze contacts. The 891 series wire-to-board connector comes with a glass filled polyester (PBT) insulator and accommodates 28/26AWG stranded wire. It has military polarization with centerbump and no strain relief. Double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors.
- Bumps are designed to prevent premature latch locking during shipment
- Gray color
- UL94V-0 Flammability rating
- >1 x 10⁹R at 500VDC Insulation resistance
应用
工业, 国防, 军用与航空, 计算机和计算机周边
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
也称为
GTIN UPC EN: 00054007515630
畅销品
862 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
将于 22-2-23 再提供 500 件
将于 22-3-8 再提供 500 件
将于 22-5-20 再提供 500 件
将于 22-6-10 再提供 500 件
752 Shanghai 有库存，可在下一个工作日发货 （在 CST 下午 4.30 之前订购）
110 US 有库存，可在 4-5 个工作日内发货
110 US 有库存，可在 4-5 个工作日内发货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 单价（含增值税） | 您所支付金额（含增值税） |
|---|---|---|
| 1+ | CNY17.22 (CNY19.46) | ( ) |
| 10+ | CNY14.01 (CNY15.83) | ( ) |
| 100+ | CNY13.40 (CNY15.14) | ( ) |
| 250+ | CNY13.26 (CNY14.98) | ( ) |
