ABS07AIG-32.768KHZ-T
晶体, AEC-Q200, 32.768 kHz, SMD, 3.2mm x 1.5mm, 12.5 pF, 20 ppm, ABS07AIG

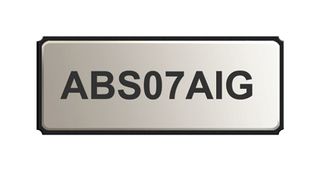

图片仅用于图解说明，详见产品说明。
产品信息
制造商ABRACON
制造商产品编号ABS07AIG-32.768KHZ-T
库存编号2849463RL
产品范围ABS07AIG
技术数据表
额定频率32.768kHz
晶体封装类型SMD, 3.2mm x 1.5mm
频率稳定度 + / --
负载电容12.5pF
频率公差 + / -20ppm
产品范围ABS07AIG
工作温度最小值-40°C
工作温度最高值125°C
SVHC(高度关注物质)No SVHC (07-Nov-2024)
产品概述
ABS07AIG-32.768KHz-T is an ABS07AIG automotive and industrial grade 32.768KHz SMD crystal. Application includes infotainment systems, keyless entry and startup, GPS and navigation, comfort control, ADAS (advanced driver assistance systems), vehicle to vehicle communication, LiDAR (light detection and ranging), in-vehicle networking, powertrain and drive control, power control and conversion.
- AEC-Q200 qualified, TS16949 production line certified
- Hermetically seam-sealed ceramic package
- 32.768KHz nominal frequency, 12.5pF load capacitance, ±20ppm frequency tolerance
- Flexural mode (tuning fork) operation mode
- Typical temperature coefficient is -0.036ppm/T², <lt/>1.4pF typical shunt capacitance
- 12.5pF typical load capacitance, 0.1µW drive level
- Aging range from -3 to +3ppm (at 25°C ± 3°C first year)
- 500Mohm maximum insulation resistance (at 100VDC)
- Dimension is 3.2 x 1.5 x 0.9mm
- Operating temperature range from -55°C to +125°C
技术规格
额定频率
32.768kHz
频率稳定度 + / -
-
频率公差 + / -
20ppm
工作温度最小值
-40°C
SVHC(高度关注物质)
No SVHC (07-Nov-2024)
晶体封装类型
SMD, 3.2mm x 1.5mm
负载电容
12.5pF
产品范围
ABS07AIG
工作温度最高值
125°C
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
税则号：85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (07-Nov-2024)
下载产品合规证书
产品合规证书
重量（千克）：.0001
