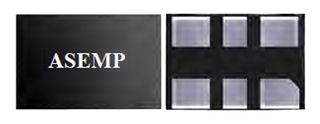

ASEMPC-60.000MHZ-LR-T

The ASEMP series pure SILICON™ Clock Oscillator offers in an ultra-miniature performance plastic package. It is suitable for use in storage area networks such as SATA, SAS, fibre channel, passive optical networks as EPON, 10G-EPON, GPON, 10G-PON, Ethernet (1G, 10GBASE-T,/KR/LR/SR, FCoE), PCI express and Display port applications.

• High performance MEMS technology by Discera
• Low power consumption for high speed communication
• Exceptional stability over temperature at -40 to 85°C, ±15ppm
• Extended automotive grade temperature stability at -55 to 125°C, ±25ppm
• Available in 50kg shock resistance configuration
• MIL-STD-883 shock and vibration compliant
• Durable QFN plastic compact packaging
• Standby or disable tri-state function
• Low jitter
• -50dBc High power supply noise reduction
• Moisture sensitivity level 1
