MX100QP

MX Series

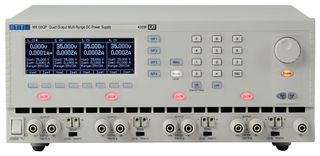

AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
AIM-TTI INSTRUMENTS MX100QP
×
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
MX100QP
库存编号
3019382
产品范围
MX
也称为:
GTIN UPC EAN: 5060584591528
技术数据表:
MX100QP   Datasheet
查看所有技术文档

产品范围选择器 (MX)

查看全系列相关产品

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
可编程

:
4输出

:
0V

:
70V

:
0A

:
6A

:
420W

:
110V

:
240V

:
1年

:
MX

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

产品概述

The MX series uses mixed mode regulation to provide up to 420W of power split across up to four outputs. Each output features CV or CI operation, simultaneous high resolution metering, switchable remote sensing, OVP and OCP trips, and an individual output switch. To match the widest range of applications, each output has more than one range giving the choice of higher voltage or higher current. When higher power is required, up to two outputs can be disabled to provide twice the power from one or two outputs. To provide its impressive power density the MX series combines high frequency switch-mode pre-regulation with linear post regulation to offer performance that comes close to that of an all-linear design. Excellent line and load regulation is matched by low noise and good transient response.
  • Four high performance outputs each with full functionality
  • Range switching gives variable voltage/current combinations
  • Shared power mode provides double power from a single output
  • Low output noise and ripple via linear final regulation
  • High setting resolution of up to 1mV and 0.1mA
  • Variable OVP and OCP trips on all outputs
  • 50 setting memories per output plus 50 linked memories
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense capability
  • Graphic LCD provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • Individual or combined output on/off control with programmable delay sequencing.
  • 3U half-rack case for bench or rack mounting
  • RS-232, USB and LAN (LXI) interfaces, GPIB option
  • Duplicate power and sense terminals at rear

附注

In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

也称为

GTIN UPC EAN: 5060584591528

可延期交货

送货开始日期 22-7-7

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

有货时请通知我

CNY16,522.88 ( 不含税  ) CNY18,670.85 ( 含税 )

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
数量 价钱 (不含税) (含税) 您所支付金额(含增值税) (不含税)


1+ CNY16,522.88 CNY18,670.85
