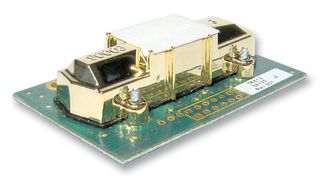

T6613

The T6613 is a CO2 Module designed to meet the volume and delivery expectations of Original Equipment Manufacturers (OEMs). The module is ideal for customers who are familiar with the design, integration and handling of electronic components. All units are factory calibrated to measure CO2 concentration levels up to 2000ppm. Telaire® offers high-volume manufacturing capabilities, a global sales force and additional engineering resources to support your sensing application needs.

• Flexible CO2 sensor platform designed to interact with other microprocessor devices
• Eliminates the need for calibration with Telaire’s patented ABC Logic™ software
• Lifetime calibration warranty
• 0 to 2000ppm Measurement range
• 400 to 1250ppm ± 30ppm or 3% of Reading accuracy
• UART at 19200baud digital output
• 0 to 4VDC Analogue output
• 0.9W Peak power consumption
• Interface connections designed for 12-pin male header with 0.1in (2.54mm) spacing
