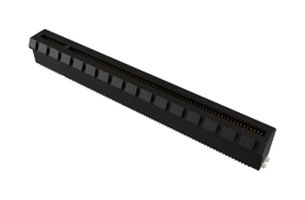

图片仅用于图解说明,详见产品说明。
326 有货
需要更多?
326 件可于 5-6 个工作日内送达(英国 库存)
数量 | 价钱 (含税) |
---|---|
1+ | CNY65.010 (CNY73.4613) |
10+ | CNY55.230 (CNY62.4099) |
25+ | CNY51.770 (CNY58.5001) |
50+ | CNY49.300 (CNY55.709) |
100+ | CNY46.950 (CNY53.0535) |
400+ | CNY43.430 (CNY49.0759) |
包装规格:每个
最低: 1
多件: 1
CNY65.01 (CNY73.46 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述
10146070-113Y0LF is a PCIe Gen 5 x16 vertical SMT card edge connector. This 1.00mm pitch, vertical card edge connector enables all generations of PCI Express® signalling in desktop PCs, workstations, and servers. The connector design supports 2.5GT/s (Gen 1), 5.0GT/s (Gen2), 8.0GT/s (Gen 3), and the recent upgrade to 16GT/s (Gen4), even further to 32GT/s (Gen 5) per differential signal pair. Target markets/applications are desktop PCs, servers, workstations, desktop PCs, notebook PCs.
- Able to meet different customer soldering requirements
- Provides excellent performance and additional options for extreme bandwidth application
- Backward mating and footprint compatible
- Capable to support up to 32GT/s without altering design
- Customers can upgrade directly to next-generation systems without additional cost in system redesign
- Meets environmental, health and safety requirements, UL file number E66906
- Low-halogen material meets next-generation requirements
- Black colour, high - temperature nylon, glass - filled, UL94V-0 housing
- Operating temperature range from -55°C to +105°C, 29.9VDC voltage rating
- 0.76μm (30μin.) gold over 1.27μm (50μin.) nickel plating contact area
技术规格
卡边连接器类型
双侧
触芯数量
164 触芯
连接器主体方向
直行
触点材料
铜合金
连接器主体材料
LCP (液晶聚合物) 材质
SVHC(高度关注物质)
No SVHC (12-Jan-2017)
卡厚度
1.57mm
连接器安装
表面安装
接触终端类型
焊接
触芯电镀-连接端
0.76µm 镀金触芯
产品范围
-
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Malaysia
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Malaysia
进行最后一道重要生产流程所在的地区
税则号:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (12-Jan-2017)
下载产品合规证书
产品合规证书
重量(千克):.016323
