EVAL-ADBMS6830BMSW

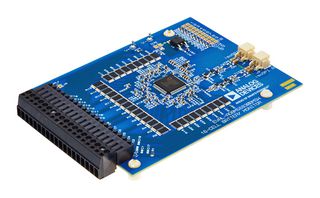

EVAL-ADBMS6830BMSW is a full-featured evaluation board for the ADBMS6830B, a 16-channel battery stack monitor for broad market applications. This board allows multiple boards to be linked through a single twisted pair wire interface (isoSPI) to monitor a long series of cells in a stack. It provides access to full channel monitoring to all cells going to battery pack either in the supply line or in the V+ to V- line. The evaluation board also features reversible isoSPi that can access either path to do measurement functions and serve as a redundant communication path. The PCB, components, and DuraClik connectors are optimized for low EMI susceptibility and emissions. Typical applications include mobile robot system, E-scooter/E-bikes/light electric Vehicle, agricultural gateway hubs, metering technology, power tools, portable energy storage system and industrial equipment battery monitoring.

• Full featured evaluation board for the ADBMS6830B
• Demonstrates high-performance measurements of the ADBMS6830B
• Includes two isoSPI ports for reversible isoSPI support
• Daisy-chain capability
• Accessible cell and GPIO connections via optional connectors
• Accessible isoSPI connections via simple DuraClik connectors
• Compatible with EVAL-ADBMS6822 dual isoSPI board
• With PC-based software for control and data analysis using broad market browser BMS GUI
• Basic embedded code functions for cell monitoring and diagnostics
