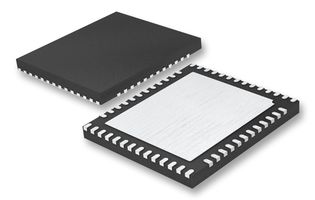

LTC2754ACUKG-16#PBF

LTC2754ACUKG-16#PBF is a quad, 16bit, multiplying serial-input, current-output digital-to-analogue converter. These SoftSpan™ DACs offer six output ranges (up to ±10V) that can be programmed through the 3-wire SPI serial interface, or pin strapped for operation in a single range. The content of any on-chip register (including DAC output-range settings) can be verified in just one instruction cycle; and if you change any register, that register will be automatically read back during the next instruction cycle. Voltage-controlled offset and gain adjustments are also provided, and the power-on reset circuit and active-low CLR pin both reset the DAC outputs to 0V regardless of the output range. Applications include high-resolution offset and gain adjustment, process control and industrial automation, automatic test equipment, and data acquisition systems.

• Guaranteed monotonic over temperature, serial readback of all on-chip registers
• Single-supply operation range from 2.7V to 5.5V, voltage-controlled offset and gain trims
• Clear and power-on-reset to 0V regardless of output range
• Integral nonlinearity is ±0.4LSB typical at (VDD = 5V, VREF = 5V)
• Gain error is ±2LSB typical at (VDD = 5V, VREF = 5V, TA = 25°C)
• Total harmonic distortion is -110dB typical at (VDD = 5V, VREF = 5V, TA = 25°C)
• Output noise voltage density is 13nV/√Hz typical at (VDD = 5V, VREF = 5V, TA = 25°C)
• VDD supply current is 1μA maximum at (VDD = 5V, VREF = 5V, TA = 25°C)
• SCK frequency is 40MHz maximum at (VDD = 5V, VREF = 5V, TA = 25°C)
• Operating temperature range from 0°C to 70°C, 52-lead plastic QFN package
