MAX22513EVKIT#

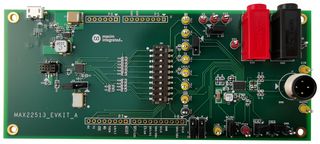

MAX22513EVKIT# is a MAX22513 evaluation kit (EV kit) consisting of the evaluation board and software. The EV kit is a fully assembled and tested circuit board that evaluates the MAX22513 IO-Link® device transceiver with integrated DC-DC buck regulators. The EV kit includes Windows®-compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX22513. The EV kit is connected to a PC through a USB-A-to-micro-B cable. Applications include industrial sensors, IO-Link sensor and actuator devices.

• IO-Link-compliant device transceiver, I/O, I2C, and SPI interface terminals
• Arduino® compatible connector, Windows 10-compatible software
• USB-PC connection, proven PCB layout, fully assembled and tested
