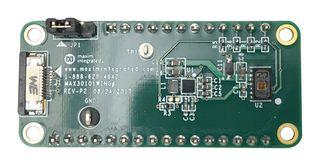

MAX30101WING#

MAX30101WING# is an expansion board (rapid development board) designed to quickly develop application firmware for the MAX30101 pulse oximetry sensor. The MAX30101WING contains the MAX14750A power management IC (PMIC) that supplies a +1.8V power rail (1V8) to the MAX30101 along with a programmable +2.5V to +5V rail (VLED) to drive the MAX30101 internal LEDs. The board is compatible with +1.8V and +3.3V logic (VIO), selectable through jumper JP1. The ZIF flat flexible cable connector allows integration of the MAX30205EVSYS, which features the MAX30205 silicon-based human body temperature sensor. The board seamlessly integrates with the MAX32630FTHR to enable rapid prototyping and development.

• Convenient expansion board: 0.9in x 2.0in DIP Form Factor, breadboard compatible, feather compatible
• Integrated PMIC to supply LED drive voltage
• MAX30101 high-sensitivity pulse oximeter and heart-rate sensor
• Fast data output capability: sample rates up to 3200sps
• Robust motion artifact resilience and -40˚C to +85˚C operating temperature range
• MAX14750A PMIC features: Micro-IQ 250mW buck-boost regulator, 1.1µA quiescent current
• Micro-IQ 100mA LDO, supplies 1V8 rail for the MAX30101
• Input voltage from 1.71V to 5.5V, output programmable from 0.09V to 4.0V
• 0.9µA quiescent current, configurable as a load switch, individual enable pins
• I2C control interface

内容

MAX30101WING expansion board, ZIF flat flex cable connector.
