MAX32675EVKIT#

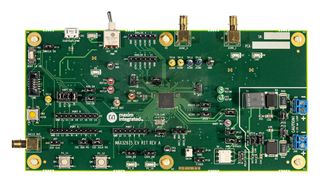

MAX32675 evaluation kit (EV kit) provides a platform for evaluation capabilities of the MAX32675 microcontroller, which is a highly integrated, mixed-signal, ultralow-power microcontroller designed for industrial and medical sensors. It contains an integrated, low-power HART modem which enables the bidirectional transfer of digital data over a current loop, to/from industrial sensors for configuration and diagnostics.

• USB 2.0 micro B to serial UART
• Two on-board, high-precision voltage references
• All GPIOs signals accessed through 0.1in headers
• Access to 4 analogue inputs through SMA connectors configured as differential
• Access to 8 analogue inputs through 0.1in headers configured as single-ended
• DAC output accessed through SMA connector or test point
• 10-pin SWD and connector
• Board power provided by USB port
• On-board 1.0V, 1.8V and 3.3V LDO regulators
• Two general-purpose LEDs and one general purpose pushbutton switch

内容

MAX32675 EV kit containing a MAX32675 with a preprogramed demo, MAX32625PICO debugger with cables, One standard A to micro B USB cable.

注释

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
