MAX889RESA+T

MAX889RESA+T is a high-frequency, regulated, 200mA, inverting charge pump. The higher switching frequency device allows the use of smaller capacitors for space-limited applications. It also features a 0.1µA logic-controlled shutdown mode. Typical applications are TFT panels, hard disk drives, camcorders, digital cameras, measurement instruments, battery-powered applications.

• 200mA output current

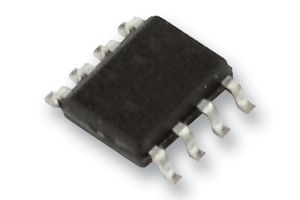

• 8-pin SO package
• Small capacitors (1µF)
• 2.7V to +5.5V input voltage range
• Adjustable regulated negative output (-2.5V to -VIN)
• Low 0.05ohm output resistance (in regulation)
• Soft-start and foldback current limited
• Short-circuit and thermal shutdown protected
• 0.5MHz switching frequency
• Temperature range from -40°C to +85°C
